DeltaGlide

DeltaGlideTM from different angle

Support and maintenance system for coke drum unheading valves

The DeltaGlide support and maintenance system is designed to facilitate installation of our bottom unheading valve. It is also designed to maintain alignment of valve components separated during maintenance and inspection. This system is designed to support the valve and accommodate vertical and lateral drum movement during cycles, facilitating disassembly of the unheading valve on the switch deck. Support is provided by an engineered spring hanger, with an option for the DeltaLift hydraulic vertical lift system with positive lockout.

Key Advantages
  • Facilitates simple installation
  • Maintains valve component alignment during maintenance and inspection
Physical/Technical Attributes

DeltaGlide®

ConstructionFabricated
MetallurgyA992 HSLA structured steel to -20oF (optional A516 Gr70 to -55oF)
Dimensions400”L x 176”W x 36”H
Weight15,000 lbs
SupportEngineered spring hanger (optional DeltaLift hydraulic vertical lift system with positive lockout)
FunctionSystem designed to support unheading valve and accommodate vertical and lateral drum movement during cycling. Facilitates maintenance of valve on the switch deck.

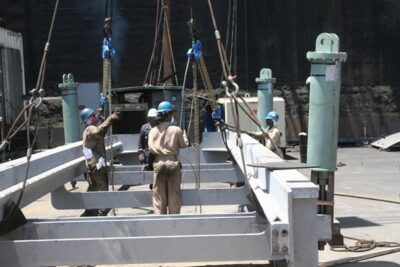

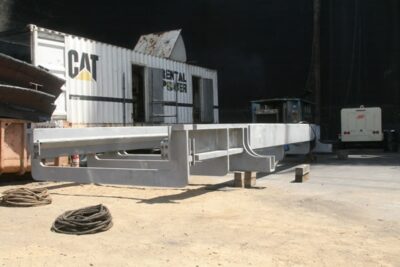

Application Photos
